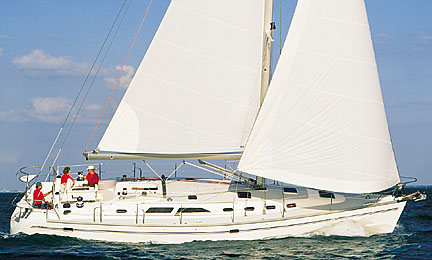

CATALINA 470
Hull
Fin with bulb & spade rudder
Rigging
Masthead Sloop
LOA
47.67 ft i.e. 14.53 m
LWL
42 ft i.e. 12.8 m
Sail Area
1010 ft² i.e. 93.83 m²
Beam
14 ft i.e. 4.27 m
Displacement
27270 lb i.e. 12369 kg
Ballast
9020 lb i.e. 4091 kg
Max Draft
7.83 ft i.e. 2.39 m
Construction
Fiberglass
Ballast Type
N/A
First Built
1998
Last Built
N/A
Maker
N/A
Design
Gerry Douglas
Make
Yanmar
Type
Diesel
Fuel
214 gals i.e. 810 L
Water
N/A
Headroom
N/A
Blue Water Value
1.02
S.A. / Displ.
17.91
Bal. / Displ.
33.08
Displ. / Length
164.32
Comfort Ratio
28.7
Capsize Screening Formula
1.86
Hull Speed
8.68 kt
Pounds/Inch Immersion
2100.99 pounds/inch
Images not found
0 Reviews
